Select files from disk and show the selected files, upload progress and results.
import Syidax.Core.FileUpload
| Type | Definition / role |
|---|---|
| File field with browsing, drag-and-drop, validation and upload progress. | |
| Supporting helper that resolves a local file size using Qt.labs.folderlistmodel; normally created by SyFileUpload. |
Previews are images of native Qt runs. Use the buttons below each image to view a result.

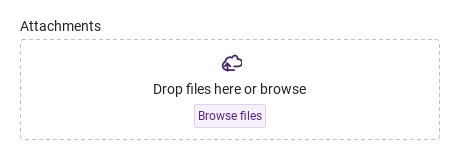

SyFileUpload is a form field with a dashed dropzone and a list of queued files.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string label: "Attachments"
property string accept: ""
property bool multiple: true
property real maxSize: 0
property int maxFiles: 0
property string buttonLabel: "Browse files"
property string dragLabel: "Drop files here or browse"
property string helperText: ""
property bool hideFiles: false
property string fieldState: ""
property bool disabled: false
property bool required: false
property string message: ""
}
SyFileUpload {
width: 420
label: storyArgs.label
accept: storyArgs.accept
multiple: storyArgs.multiple
maxSize: storyArgs.maxSize
maxFiles: storyArgs.maxFiles
buttonLabel: storyArgs.buttonLabel
dragLabel: storyArgs.dragLabel
helperText: storyArgs.helperText
hideFiles: storyArgs.hideFiles
fieldState: storyArgs.fieldState
disabled: storyArgs.disabled
required: storyArgs.required
message: storyArgs.message
}

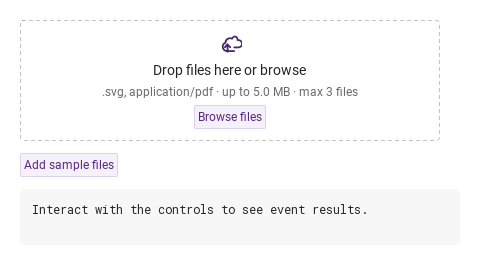

}Every file passes metadata/readability and accept/maxFiles/maxSize checks before entering files/formValue.
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
readonly property alias uploadControl: upload
Column {
spacing: 12
SyFileUpload {
id: upload
width: 420
accept: ".svg,application/pdf"; maxSize: 5 * 1024 * 1024; maxFiles: 3; multiple: true
onRejected: (detail) => output.log(detail.file.name + ": " + detail.reason)
}
Row {
spacing: 8
SyButton { objectName: "upload-samples"; text: "Add sample files"; variant: "secondary"; size: "small"; onClicked: upload.addFiles([Qt.resolvedUrl("../avatar/portrait.svg"), Qt.resolvedUrl("samples/notes.txt"), Qt.resolvedUrl("../pdf-viewer/docs/quarterly-report.pdf"), Qt.resolvedUrl("../avatar/portrait.svg"), Qt.resolvedUrl("../pdf-viewer/docs/quarterly-report.pdf")]) }
}
EventLog { id: output }
}

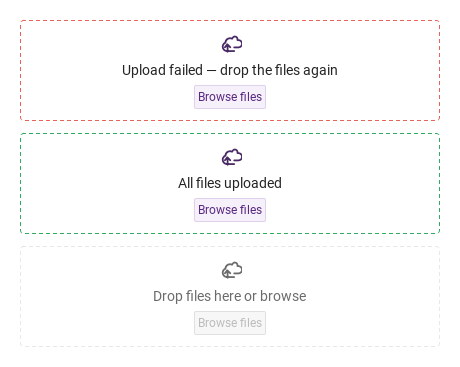

}fieldState paints the dropzone border to report the outcome of the app's own upload: "error", "warning" or "success" ("" / "default" for the normal border).
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 12
SyFileUpload { id: featureTarget0; visible: true; width: 420; fieldState: "error"; dragLabel: "Upload failed — drop the files again" }
SyFileUpload { id: featureTarget1; visible: true; width: 420; fieldState: "success"; dragLabel: "All files uploaded" }
SyFileUpload { id: featureTarget2; visible: true; width: 420; disabled: true }
}

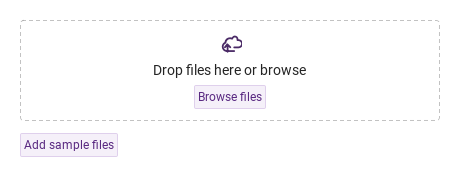

}The component does not upload.
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
readonly property alias uploadControl: upload
Column {
spacing: 12
SyFileUpload {
id: upload
width: 420
multiple: true
onSelected: (detail) => detail.files.forEach((file) => story.startUpload(file.id))
}
SyButton { objectName: "upload-samples"; text: "Add sample files"; variant: "secondary"; size: "small"; onClicked: upload.addFiles([Qt.resolvedUrl("../pdf-viewer/docs/quarterly-report.pdf"), Qt.resolvedUrl("../avatar/portrait.svg")]) }
}
id: story
property var uploading: ({})
function startUpload(id) { uploading[id] = 0; ticker.start() }
Timer {
id: ticker
interval: 120
repeat: true
onTriggered: {
let busy = false
for (const id in story.uploading) {
if (story.uploading[id] >= 100) continue
story.uploading[id] += 10
busy = true
if (story.uploading[id] >= 100) upload.setProgress(id, 100, id === "f2" ? "error" : "success")
else upload.setProgress(id, story.uploading[id])
}
if (!busy) ticker.stop()
}
}

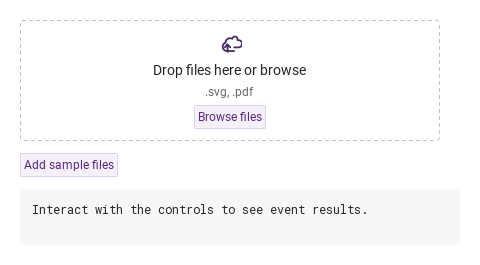

}Every file passes metadata/readability and accept/maxFiles/maxSize checks before entering files/formValue.
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
readonly property alias uploadControl: upload
Column {
spacing: 12
SyFileUpload {
id: upload
width: 420
multiple: true; accept: ".svg,.pdf"
onSelected: (detail) => { if (true) { output.log(("selected: %1").arg(detail.files.map((f) => f.name).join(", "))) } }
onRejected: (detail) => { if (true) { output.log(("rejected: %1 (%2)").arg(detail.file.name).arg(detail.reason)) } }
onChanged: (detail) => { if (true) { output.log(("changed: %1 files").arg(detail.files.length)) } }
onRemoved: (detail) => { if (true) { output.log(("removed: %1").arg(detail.file.name)) } }
}
SyButton { id: exampleControl1; visible: true; objectName: "upload-samples"; text: "Add sample files"; variant: "secondary"; size: "small"; onClicked: upload.addFiles([Qt.resolvedUrl("../avatar/portrait.svg"), Qt.resolvedUrl("samples/notes.txt")]) }
EventLog { id: output }
}

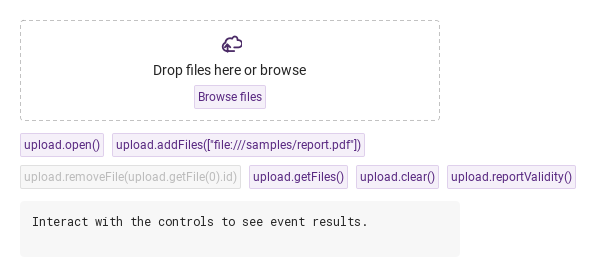

}Every file passes metadata/readability and accept/maxFiles/maxSize checks before entering files/formValue.
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
readonly property alias uploadControl: upload
Column {
spacing: 12
SyFileUpload { id: upload; width: 420; multiple: true; required: true }
Flow {
width: 560
spacing: 8
SyButton { visible: true; text: "upload.open()"; variant: "secondary"; size: "small"; onClicked: upload.open() }
SyButton { id: exampleControl1; visible: true; text: "upload.addFiles([\"file:///samples/report.pdf\"])"; variant: "secondary"; size: "small"; onClicked: upload.addFiles([Qt.resolvedUrl("../pdf-viewer/docs/quarterly-report.pdf")]) }
SyButton { id: exampleControl2; visible: true; text: "upload.removeFile(upload.getFile(0).id)"; variant: "secondary"; size: "small"; enabled: upload.files.length > 0; onClicked: upload.removeFile(upload.getFile(0).id) }
SyButton { visible: true; text: "upload.getFiles()"; variant: "secondary"; size: "small"; onClicked: output.log("getFiles() → " + JSON.stringify(upload.getFiles().map((f) => f.name))) }
SyButton { visible: true; text: "upload.clear()"; variant: "secondary"; size: "small"; onClicked: upload.clear() }
SyButton { visible: true; text: "upload.reportValidity()"; variant: "secondary"; size: "small"; onClicked: output.log("reportValidity() → " + upload.reportValidity()) }
}
EventLog { id: output }
}

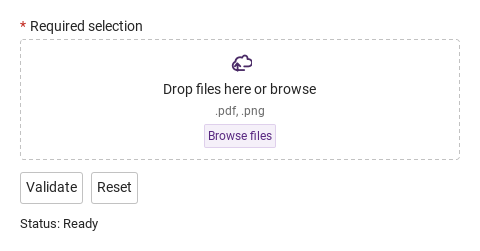

}Compare the untouched field, validation error and reset result.
import QtQuick
import Syidax.Core
Column {
width: 440; spacing: 12
SyFileUpload {
id: field; width: parent.width; name: "selection"; required: true
label: "Required selection"; accept: ".pdf,.png"
error: "Complete this field before continuing."
}
Row {
spacing: 8
SyButton { id: check; text: "Validate"; onClicked: field.reportValidity() }
SyButton { id: reset; text: "Reset"; onClicked: field.reset() }
}
Text { text: "Status: " + (field.invalid ? "Invalid" : "Ready"); color: Theme.semantic.textDefault }

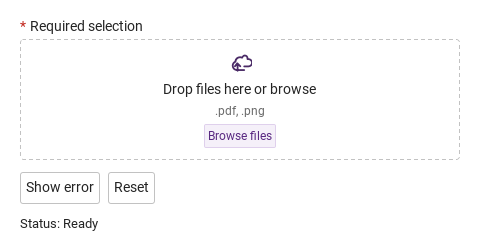

}Show an application-specific error, then reset the field.
import QtQuick
import Syidax.Core
Column {
width: 440; spacing: 12
SyFileUpload {
id: field; width: parent.width; name: "selection"; required: true
label: "Required selection"; accept: ".pdf,.png"
error: "This selection is currently unavailable. Choose another."
}
Row {
spacing: 8
SyButton { id: check; text: "Show error"; onClicked: field.setCustomError() }
SyButton { id: reset; text: "Reset"; onClicked: field.reset() }
}
Text { text: "Status: " + (field.invalid ? "Invalid" : "Ready"); color: Theme.semantic.textDefault }
}Hover or select an item for its QML example and copy button.
| Property | Type | Default | Description |
|---|---|---|---|
| list | [] | The queue: [{ id, name, size, type, progress, status, message, url }]. Read it; change it through the methods. | |
| string | "" | Comma-separated rules: .ext · type/* · type/subtype. Empty = everything. | |
| bool | false | Several files; otherwise a new pick replaces the queue. | |
| real | 0 | Max size in bytes, checked once the size is read; 0 = no limit. | |
| int | 0 | Max number of files in the queue; 0 = no limit. | |
| string | "Browse files" | The Browse button (also the dialog title). | |
| string | "Drop files here or browse" | The text in the zone. | |
| string | "" | Replaces the derived limits line under the drag text. | |
| bool | false | No list under the zone. | |
| string | "" | "" / default · error · warning · success — paints the border; set by the app. | |
| string | "" | The id of the clicked row (setSelectedFile()). | |
| bool (read-only) | — | Files are being dragged over the zone. | |
| string (read-only) | — | While dragging: all · some · none of the files pass accept; "" otherwise. | |
| string (read-only) | — | The helper line actually shown. | |
| list (read-only) | — | What the form submits: files. | |
| bool (read-only) | — | The zone has keyboard focus | |
| bool (read-only) | — | the pointer is over it. | |
| string | "" | The frame's title, helper text under the list, custom error copy. | |
| string | "" | The frame's title, helper text under the list, custom error copy. | |
| string | "" | The frame's title, helper text under the list, custom error copy. | |
| string | "files" | The key in SyForm.values(). | |
| bool | false | Everything inert and always valid | |
| bool | false | an empty queue is valueMissing. | |
| read-only | — | Validity: "" · valueMissing · custom; invalid once touched or reported. | |
| read-only | — | Validity: "" · valueMissing · custom; invalid once touched or reported. | |
| read-only | — | Validity: "" · valueMissing · custom; invalid once touched or reported. | |
| real | 360 | The width when the app sets none. |
| Method | Description |
|---|---|
Opens the file dialog (filtered by accept, multi-select with multiple). Ignored while disabled. | |
| Every file passes metadata/readability and accept/maxFiles/maxSize checks before entering files/formValue. selected never fires before validation. A rejected file emits rejected({file,reason}) only. validating exposes pending work. Overlapping batches commit in order; clear discards late results. Successful single replacement includes the previous file in changed.removed (no separate removed signal); failure preserves it. | |
Removes one item; emits removed then changed. Unknown ids are ignored. | |
Empties the queue; emits changed with every item in removed (no removed signal). | |
Updates one item's bar (0 … 100) and status (given, or derived from the progress); emits changed. | |
| A copy of the queue. | |
The item at index (or null); without an index the selected item, else the first, else null. | |
| Highlights that row (what a click does). | |
| Keyboard focus on / off the zone. | |
| Keyboard focus on / off the zone. | |
Whether the status is "", silently | |
| the same and reveals the error line. | |
"", "valueMissing" or "custom". | |
Forces the custom status | |
| clears it. | |
clear() and the touched / submitted / custom flags off. |
| Signal | Arguments | When |
|---|---|---|
detail: { files } | Files were added (dialog, drop, addFiles()); files holds the new items only. | |
detail: { file, reason } | Validation failed; never added to files. | |
detail: { files, added, removed } | Accepted additions/replacement/removal/clear/progress. Rejection alone does not emit it. | |
detail: { file, files } | One file left through its × or removeFile(id). Not for clear(). | |
detail: { files, isValid, status } | The zone gained / lost keyboard focus; blur marks the field touched. | |
detail: { files, isValid, status } | The zone gained / lost keyboard focus; blur marks the field touched. |
| Item | Behavior / conditions |
|---|---|
| Every file passes metadata/readability and accept/maxFiles/maxSize checks before entering files/formValue. selected never fires before validation. A rejected file emits rejected({file,reason}) only. validating exposes pending work. Overlapping batches commit in order; clear discards late results. Successful single replacement includes the previous file in changed.removed (no separate removed signal); failure preserves it. | |
| Every file passes metadata/readability and accept/maxFiles/maxSize checks before entering files/formValue. selected never fires before validation. A rejected file emits rejected({file,reason}) only. validating exposes pending work. Overlapping batches commit in order; clear discards late results. Successful single replacement includes the previous file in changed.removed (no separate removed signal); failure preserves it. | |
| Files are being dragged over the zone. | |
While dragging: all · some · none of the files pass accept; "" otherwise. | |
Comma-separated rules: .ext · type/* · type/subtype. Empty = everything. | |
Files were added (dialog, drop, addFiles()); files holds the new items only. | |
Updates one item's bar (0 … 100) and status (given, or derived from the progress); emits changed. | |
selected({ files }) carries only the new items; for each, call setProgress(id, progress, status) as the upload advances: progress is clamped to 0 … 100; status may be "ready", "uploading", "success" or "error", and when omitted it follows the progress (100 → "success", > 0 → "uploading", 0 → unchanged). Rows show the bar once the status leaves "ready", colored by status; message on an item is shown under the name when present. | |
selected({ files }) carries only the new items; for each, call setProgress(id, progress, status) as the upload advances: progress is clamped to 0 … 100; status may be "ready", "uploading", "success" or "error", and when omitted it follows the progress (100 → "success", > 0 → "uploading", 0 → unchanged). fieldState paints the border — error · warning · success — to report the app's outcome; the component never sets it. | |
Rows show the bar once the status leaves "ready", colored by status; message on an item is shown under the name when present. The label sits above, message or the error line below the list. | |
| Accepted additions/replacement/removal/clear/progress. Rejection alone does not emit it. | |
Removes one item; emits removed then changed. Unknown ids are ignored. | |
The id of the clicked row (setSelectedFile()). | |
The item at index (or null); without an index the selected item, else the first, else null. | |
| No list under the zone. | |
The queue: [{ id, name, size, type, progress, status, message, url }]. Read it; change it through the methods. | |
disabled dims the zone and the rows, blocks click, drop, focus and keys, and ignores open() / addFiles(); the status is then always "". | |
Opens the file dialog (filtered by accept, multi-select with multiple). Ignored while disabled. | |
| Every file passes metadata/readability and accept/maxFiles/maxSize checks before entering files/formValue. selected never fires before validation. A rejected file emits rejected({file,reason}) only. validating exposes pending work. Overlapping batches commit in order; clear discards late results. Successful single replacement includes the previous file in changed.removed (no separate removed signal); failure preserves it. | |
"" / default · error · warning · success — paints the border; set by the app. | |
required and an empty queue → valueMissing; setCustomError() → custom; disabled → "". | |
required and an empty queue → valueMissing; setCustomError() → custom; disabled → "". | |
The error line shows once the field is touched (a file was added or the zone lost focus) or after reportValidity(). | |
The key in SyForm.values(). | |
name is "files" by default; SyForm.values() receives the queue (formValue), i.e. the list of file items with their urls. | |
What the form submits: files. | |
| The width when the app sets none. | |
the zone is at least 96 px tall and as wide as the field: preferredWidth 360 unless the app sets width. | |
The label sits above, message or the error line below the list. |
| Item | Behavior / conditions |
|---|---|
| Only files passing metadata/readability/type/count/size checks enter files/formValue and emit selected. Pending files stay private while validating. Overlapping batches commit in call order; clear discards late results. hideFiles never bypasses validation. Valid single replacement includes the old file in changed.removed; rejected replacement preserves it. MIME/accept checks use extensions, not content inspection. | |
| For hosts without Qt.labs.folderlistmodel, register Theme.fileMetadataProvider with fileSize(url) returning readable bytes or -1. The packaged C++ and Python hosts include this adapter. |
