Ask for confirmation beside the action that needs it, such as deleting an item.
import Syidax.Core.Popconfirm
| Type | Definition / role |
|---|---|
| Anchored confirmation popup with confirm and cancel actions. |
Previews are images of native Qt runs. Use the buttons below each image to view a result.

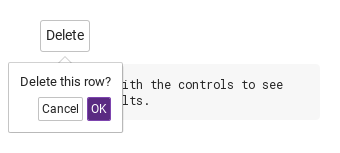

SyPopconfirm is a popover that asks before acting: declare it inside the item that needs confirming
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string position: "top"
property string trigger: "click"
property bool arrow: true
property string confirmText: "OK"
property string cancelText: "Cancel"
property bool sticky: false
property string animation: "none"
}
Item {
width: 320
height: 140
Column {
anchors.centerIn: parent
spacing: 12
SyButton {
text: "Delete"
SyPopconfirm { id: exampleControl1;
position: storyArgs.position
trigger: storyArgs.trigger
arrow: storyArgs.arrow
confirmText: storyArgs.confirmText
cancelText: storyArgs.cancelText
sticky: storyArgs.sticky
animation: storyArgs.animation
onSelected: (choice) => output.log(choice)
Text { text: "Delete this row?"; font.family: Theme.fontFamily; font.pixelSize: 13; color: Theme.popconfirm.textEnabled }
}
}
EventLog { id: output; width: 280 }
}
}

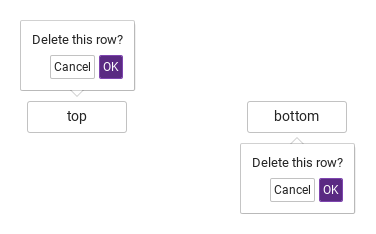

}Compare the configuration and result of position · arrow.
import QtQuick
import Syidax.Core
pragma ComponentBehavior: Bound
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: story
readonly property var positions: ["top", "bottom"]
Item {
width: 420
height: 300
Row {
anchors.centerIn: parent
spacing: 120
Repeater {
model: story.positions
delegate: SyButton {
id: cell
required property string modelData
text: cell.modelData
width: 100
SyPopconfirm { id: featureTarget0;
position: cell.modelData; arrow: true; trigger: "none"
Component.onCompleted: { Qt.callLater(setOpen); }
Text { text: "Delete this row?"; font.family: Theme.fontFamily; font.pixelSize: 13; color: Theme.popconfirm.textEnabled }
}
}
}
}
}
}confirmText and cancelText are the labels of the two buttons — "OK" and "Cancel" by default; set them to the verbs of the decision ("Yes, publish" / "Not yet", "Delete" / "Keep").
import QtQuick
import Syidax.Core
Item {
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
SyButton {
text: "Publish"
SyPopconfirm { id: featureTarget0;
confirmText: "Publish now"; cancelText: "Not yet"; arrow: true
Column {
spacing: 4
Text { text: "Publish the page?"; font.weight: Font.Medium; font.family: Theme.fontFamily; font.pixelSize: 14; color: Theme.popconfirm.textEnabled }
Text { text: "Everyone with the link will see it."; color: Theme.semantic.textSubtle; font.family: Theme.fontFamily; font.pixelSize: 12 }
}
}
}

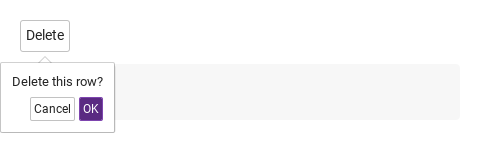

}selected(choice) fires when one of the two buttons is pressed — or when okClick() / cancelClick() is called — with choice as the string "ok" or "cancel"; the popconfirm closes right after.
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 12
SyButton {
text: "Delete"
SyPopconfirm {
id: confirm
arrow: true
onSelected: (choice) => { if (true) { output.log(("selected: %1").arg(choice)) } }
onVisibleChanged: { if (true) { output.log(("visible: %1").arg(confirm.visible)) } }
Text { text: "Delete this row?"; font.family: Theme.fontFamily; font.pixelSize: 13; color: Theme.popconfirm.textEnabled }
}
}
EventLog { id: output }
}

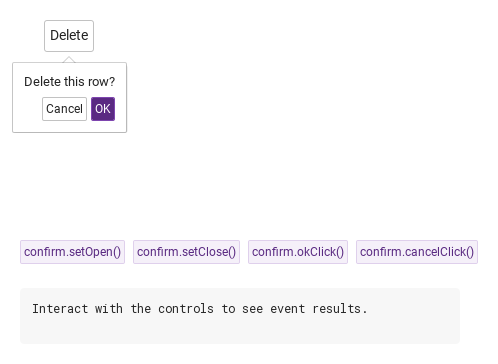

}setOpen() opens the popconfirm and setClose() closes it from code, whatever the trigger; setOpen() still refuses a disabled anchor and setClose() closes even a sticky one, and neither emits selected.
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
// Focused Gallery routes: keep only the selected API and its prerequisites.
id: featureStory
Column {
spacing: 24
Item {
width: 560; height: 220
SyButton {
x: 24; y: 24
text: "Delete"; SyPopconfirm { id: confirm; trigger: "none"; arrow: true; onSelected: (choice) => output.log(choice); Text { text: "Delete this row?"; font.family: Theme.fontFamily; font.pixelSize: 13; color: Theme.popconfirm.textEnabled } } }
}
Flow {
objectName: "exampleCommands"
width: 560
spacing: 8
SyButton { id: exampleControl1; visible: true; text: "confirm.setOpen()"; variant: "secondary"; size: "small"; onClicked: confirm.setOpen() }
SyButton { id: exampleControl2; visible: true; text: "confirm.setClose()"; variant: "secondary"; size: "small"; onClicked: confirm.setClose() }
SyButton { id: exampleControl3; visible: true; text: "confirm.okClick()"; variant: "secondary"; size: "small"; onClicked: confirm.okClick() }
SyButton { id: exampleControl4; visible: true; text: "confirm.cancelClick()"; variant: "secondary"; size: "small"; onClicked: confirm.cancelClick() }
}
EventLog { id: output }
}
}Confirmation without arrow, configured with arrow.
import QtQuick
import Syidax.Core
Item {
component EventLog: Rectangle {
id: logBox
property var lines: []
implicitWidth: 440
implicitHeight: Math.max(56, logText.implicitHeight + 24)
radius: 4; color: Theme.semantic.backgroundBold
function log(value) { lines = lines.slice(-3).concat([String(value)]) }
Text {
id: logText; x: 12; y: 12; width: parent.width - 24
text: logBox.lines.length ? logBox.lines.join("\n") : "Interact with the controls to see event results."
wrapMode: Text.Wrap; color: Theme.semantic.textDefault
font.family: Theme.monoFontFamily; font.pixelSize: 12
}
}
implicitWidth: Math.max(360, childrenRect.width)
implicitHeight: childrenRect.height
property QtObject settings: QtObject {
id: storyArgs
property string position: "top"
property string trigger: "click"
property bool arrow: false
property string confirmText: "OK"
property string cancelText: "Cancel"
property bool sticky: false
property string animation: "none"
}
Item {
width: 320
height: 140
Column {
anchors.centerIn: parent
spacing: 12
SyButton {
text: "Delete"
SyPopconfirm { id: exampleControl1;
position: storyArgs.position
trigger: storyArgs.trigger
arrow: storyArgs.arrow
confirmText: storyArgs.confirmText
cancelText: storyArgs.cancelText
sticky: storyArgs.sticky
animation: storyArgs.animation
onSelected: (choice) => output.log(choice)
Text { text: "Delete this row?"; font.family: Theme.fontFamily; font.pixelSize: 13; color: Theme.popconfirm.textEnabled }
}
}
EventLog { id: output; width: 280 }
}
}
}Hover or select an item for its QML example and copy button.
| Property | Type | Default | Description |
|---|---|---|---|
| list (default property) | — | The question: the items declared inside, shown above the buttons. | |
| string | "OK" | Label of the primary button (emits selected("ok")). | |
| string | "Cancel" | Label of the secondary button (emits selected("cancel")). | |
| string | "top" | "top" · "topLeft" · "topRight" · "bottom" · "bottomLeft" · "bottomRight" · "left" · "leftTop" · "leftBottom" · "right" · "rightTop" · "rightBottom". | |
| string | "click" | "click" (a tap on the anchor toggles) · "none" (code only). | |
| bool | false | Show the pointer towards the anchor. | |
| bool | false | No Escape / outside-press close; the buttons and setClose() still close it. | |
| int | 0 | Milliseconds before opening / closing. | |
| int | 0 | Milliseconds before opening / closing. | |
| string | "none" | "none" · "fade"; speed "x-fast" · "fast" · "medium" · "slow" · "x-slow". | |
| string | "fast" | "none" · "fade"; speed "x-fast" · "fast" · "medium" · "slow" · "x-slow". | |
| Item | the item it is declared in | The item it follows (resolved to the nearest ancestor with hovered within three levels). | |
| bool (read-only) | — | The popconfirm is visible. | |
| string (read-only) | — | The side after flipping, with -start / -end. | |
| color | popconfirm tokens | The surface look. | |
| color | subtle border | The surface look. | |
| real | 2 | The surface look. | |
| bool | true | The surface look. | |
| real | 12 | Space between the content and the edge. | |
| real | 10 / 4 | Base popup geometry. | |
| bool | true | Base popup geometry. | |
| bool | false | Base popup geometry. | |
| read-only | — | The resolved speed, the current side, whether the anchor accepts opening, the anchor's rectangle in overlay coordinates. | |
| read-only | — | The resolved speed, the current side, whether the anchor accepts opening, the anchor's rectangle in overlay coordinates. | |
| read-only | — | The resolved speed, the current side, whether the anchor accepts opening, the anchor's rectangle in overlay coordinates. | |
| read-only | — | The resolved speed, the current side, whether the anchor accepts opening, the anchor's rectangle in overlay coordinates. |
| Method | Description |
|---|---|
Emits selected("ok") and closes — exactly what the OK button does; works even while closed. | |
Emits selected("cancel") and closes — exactly what the Cancel button does. | |
Cancels pending delays and opens, whatever the trigger — unless the anchor is disabled / readonly / not enabled. | |
Cancels pending delays and closes without selected, even when sticky. | |
| The base popup's immediate open / close and the trigger-style toggle. | |
| The base popup's immediate open / close and the trigger-style toggle. | |
| The base popup's immediate open / close and the trigger-style toggle. | |
| Re-computes the placement; automatic on anchor, size and window changes. |
| Signal | Arguments | When |
|---|---|---|
choice: string — "ok" or "cancel" | A button was pressed, or okClick() / cancelClick() was called; the popup closes right after. Not emitted for Escape, an outside press, setClose() or the anchor toggle. | |
— (read visible / isOpen) | The popup opened or closed, by any path. | |
| — | Emitted just before the popup is shown. | |
| — | Emitted after the popup finishes its enter transition. | |
| — | Emitted just before the popup is hidden. | |
| — | Emitted after the popup finishes its exit transition. |
| Item | Behavior / conditions |
|---|---|
the item the popconfirm is declared in; inside a control's content it walks up at most three parents to the nearest item with a boolean hovered, so the control itself is the anchor. It is parented to the anchor and drawn in the window overlay, following the anchor. | |
"click" (a tap on the anchor toggles) · "none" (code only). | |
Cancels pending delays and opens, whatever the trigger — unless the anchor is disabled / readonly / not enabled. | |
Cancels pending delays and closes without selected, even when sticky. | |
A disabled or readonly anchor never opens it; opendelay applies to the click, and closing by any route — Escape, an outside press, close() — cancels a pending delayed open. | |
A disabled or readonly anchor never opens it; opendelay applies to the click, and closing by any route — Escape, an outside press, close() — cancels a pending delayed open. | |
A button was pressed, or okClick() / cancelClick() was called; the popup closes right after. Not emitted for Escape, an outside press, setClose() or the anchor toggle. | |
Emits selected("ok") and closes — exactly what the OK button does; works even while closed. | |
Emits selected("cancel") and closes — exactly what the Cancel button does. | |
| The popup opened or closed, by any path. | |
Watch visibleChanged / closed() to notice it. | |
No Escape / outside-press close; the buttons and setClose() still close it. | |
the content (the default property; give your items sizes or a Column) over a right-aligned row of two small buttons: cancelText (default style) then confirmText (primary), 4 px apart, 8 px under the content; the content is at least as wide as the buttons. 12 px padding, 2 px radius, a subtle 1 px border and a soft shadow. The surface sets no text color — use Theme.popconfirm.textEnabled. | |
"top" · "topLeft" · "topRight" · "bottom" · "bottomLeft" · "bottomRight" · "left" · "leftTop" · "leftBottom" · "right" · "rightTop" · "rightBottom". | |
The side after flipping, with -start / -end. | |
| Show the pointer towards the anchor. | |
Animation — animation: "fade" (any name other than "none") fades over animationMs (x-fast 100 · fast 150 · medium 250 · slow 350 · x-slow 500); none under Theme.reducedMotion. | |
Animation — animation: "fade" (any name other than "none") fades over animationMs (x-fast 100 · fast 150 · medium 250 · slow 350 · x-slow 500); none under Theme.reducedMotion. | |
| The popconfirm is visible. | |
State — isOpen is the popup's visible. |
| Item | Behavior / conditions |
|---|---|
SyModal for bigger decisions, SyPopover for information without a decision, SyTooltip for a hint; SyButton as the usual anchor and for the two buttons inside. | |
| closable (default true) controls outside/Escape dismissal independently of sticky. OK/Cancel and setClose() remain explicit close actions even with closable=false. |
